Bellows Type Coupling (MFB-C Series)

Request to Call Back Send Inquiry

Bellows Type Coupling (MFB-C Series) Price And Quantity

MFB / MFBS is a bellows type flexible coupling.

The bellows allows eccentricity, angular misalignment, and end-play.

Even if there is misalignment, the constant revolution is performed.

Ideal for rotary encoder applications.

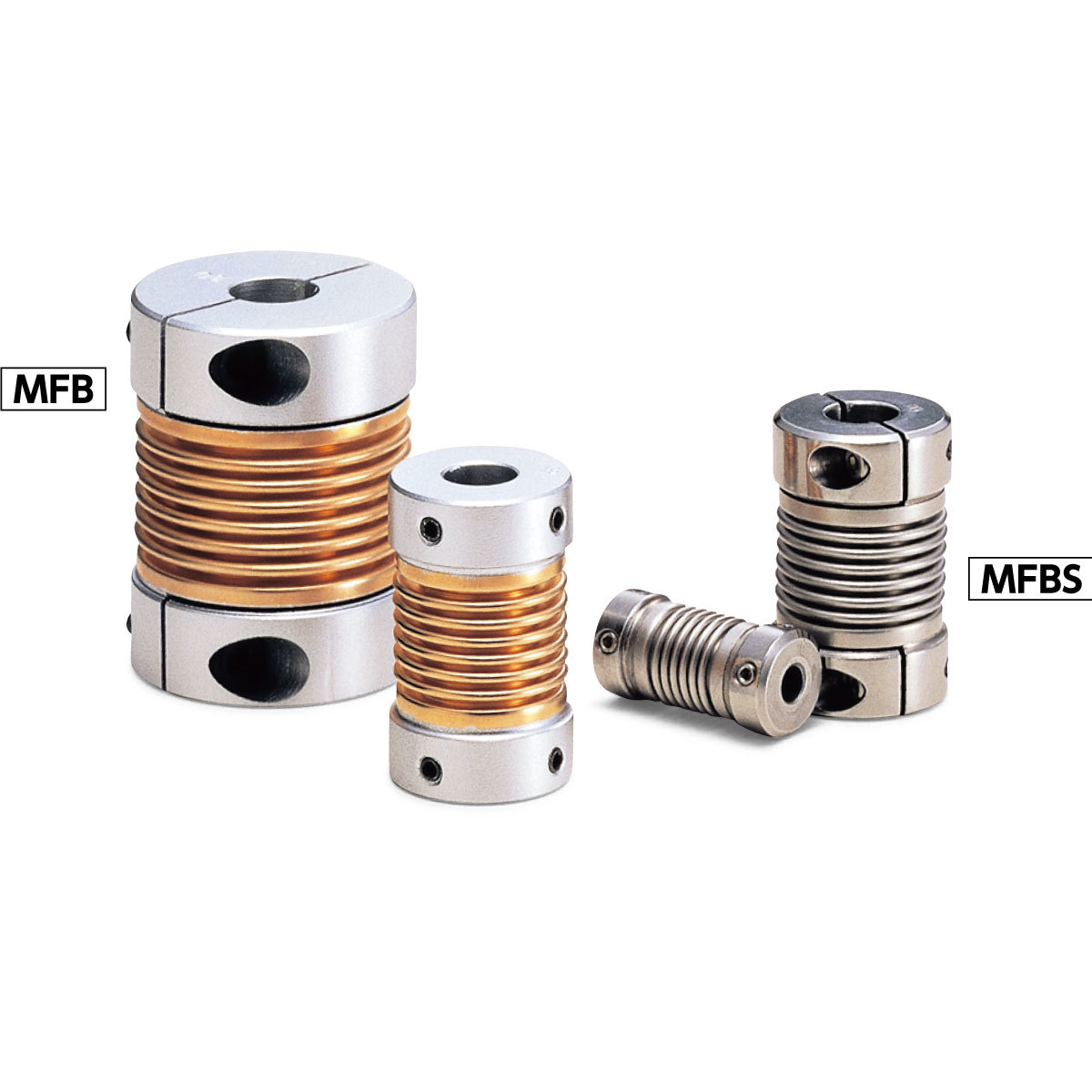

There are two types of bellows: phosphor bronze type and stainless steel type.

MFB (set screw type, aluminum hub)

MFB-C (clamping type, aluminum hub)

MFBS (set screw type, stainless steel)

MFBS-C (clamping type, stainless steel)

Application: Encoder

Specifications:

Torque:

Min.: 0.3 Nm (0.22 ft.lb)

Max.: 2 Nm (1.48 ft.lb)

Rotational speed:

Min.: 19000 rpm (119380.52 rad.min-1)

Max.: 52000 rpm (326725.64 rad.min-1)

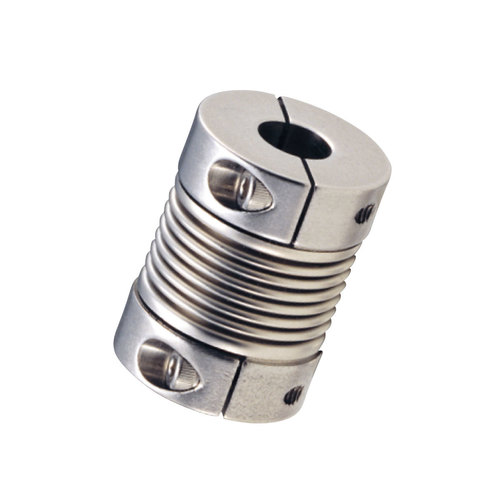

Bellows Type Coupling (MFBS-C Series) Application : Application: Encoder Material : Stainless Steel Bore : 314 Outer Diameter : 1232 Millimeter (mm)
