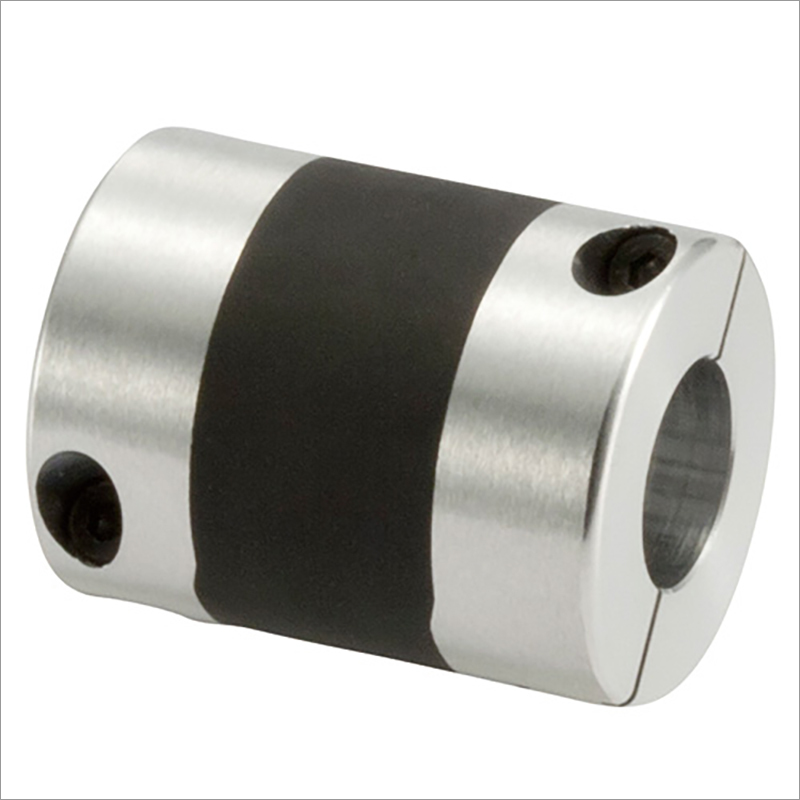

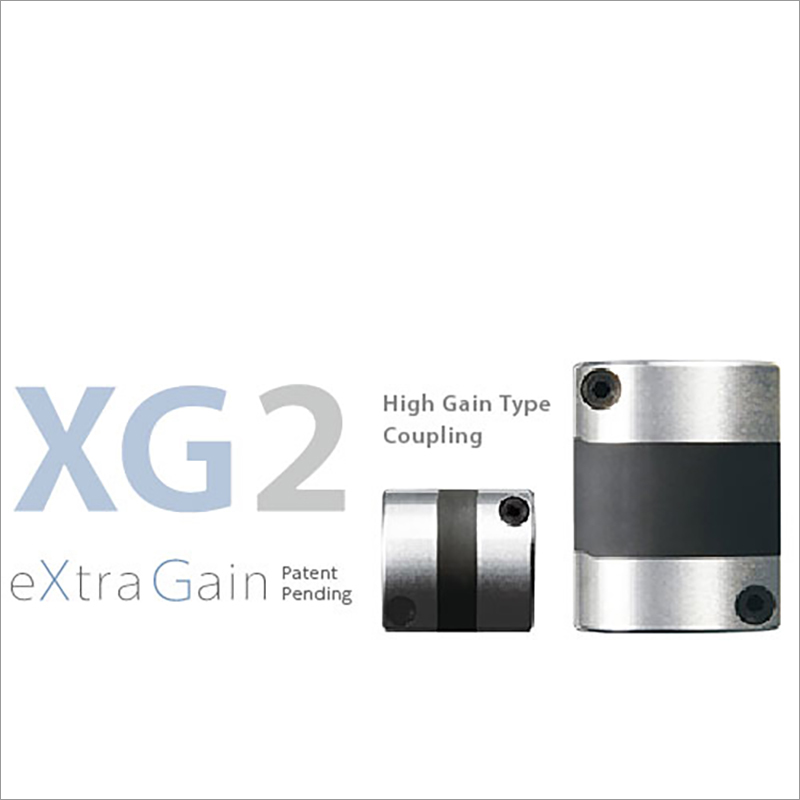

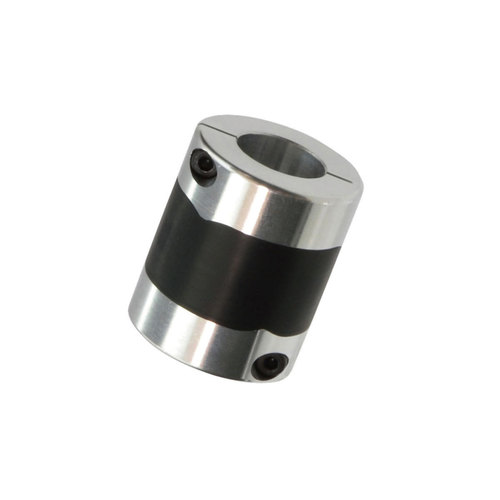

High Gain Rubber Type Coupling (XG2 Series)

Product Description

XG2 is a single piece construction with the two aluminum hubs molded with high-gain rubber. It surpasses XGTC XGLC XGSC in performance.

The optimal damping and rigidity design enables realization of even greater servomotor gain, leading to reduced stabilization time.

Suppressing speed unevenness control during stepping motor operation is effective.

Contributes to improved productivity and quality by suppressing residual vibration during positioning.

types use highgain fluororesin rubber. Heat resistance, oil resistance, and chemical resistance are excellent.

Standard type XGT2C

Long type XGL2C

short type XGS2C

Application

Semiconductor manufacturing equipment / Mount machines / Machine tools / Packaging machines

Optional Services

-Couplings Bore and Keyway Additional Modification Service

-Coupling Stainless Steel Screw Alteration Service

Cleanroom Wash / Cleanroom Packing Service

Please feel free to contact us for a quotation.

Specifications:

Torque:

Min.: 1.1 Nm (0.81 ft.lb)

Max.: 65 Nm (47.94 ft.lb)

Rotational speed:

Min.: 0 rpm (0 rad.min-1)

Max.: 42000 rpm (263893.78 rad.min1)
