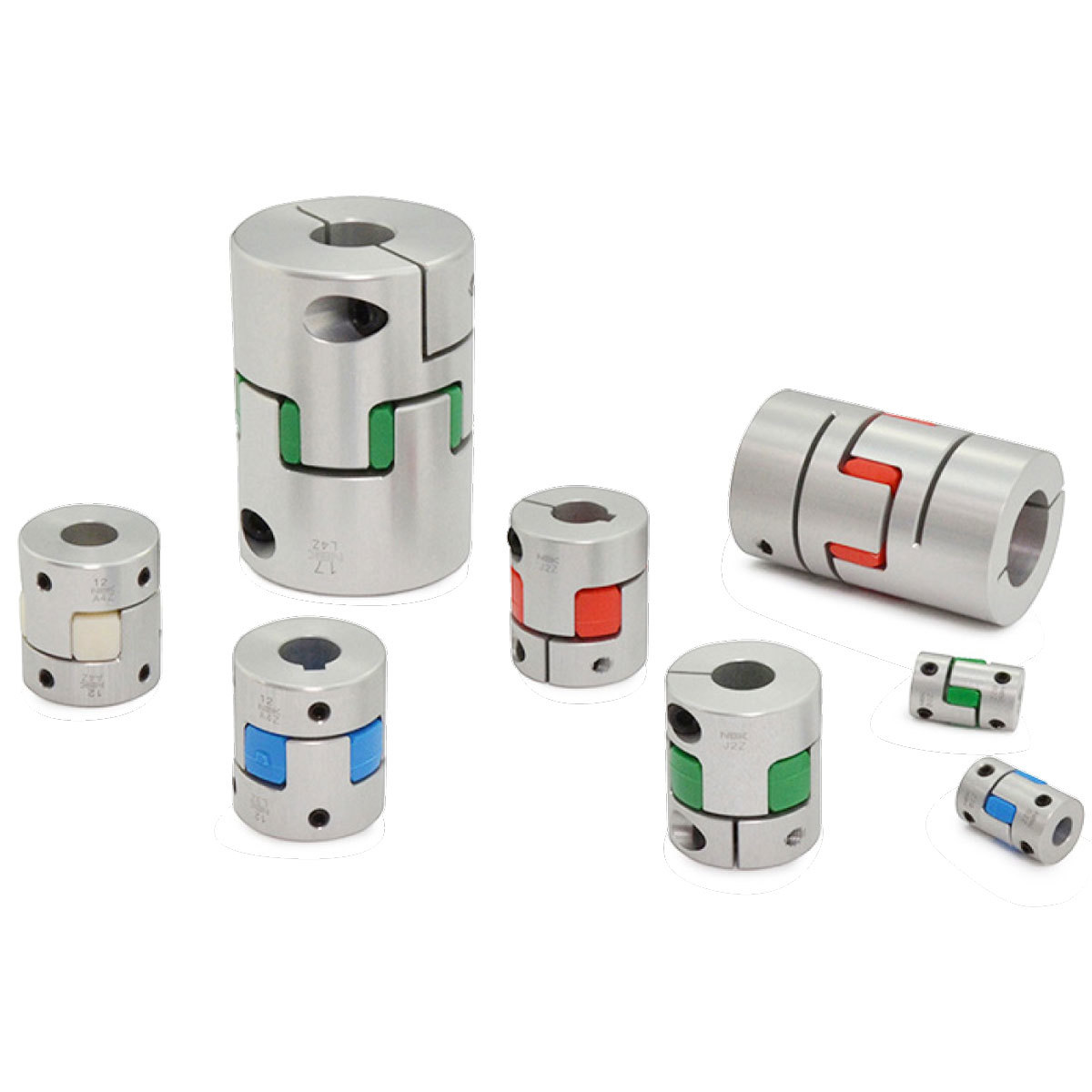

Jaw Type Coupling (MJC Series)

Product Description

MJC is a jaw type flexible coupling.

Tight Fit sleeve enables transmission with zero backlash at low torque.

Easy fit sleeve allows you to assemble and partition the hub and sleeve smoothly.

Excellent flexibility allows eccentricity, angular misalignment and twisting vibration to be accepted.

It has electrical insulation. Resistance value: Not less than 2 M

There are four types of sleeve hardness. Please select desirable units according to usage conditions including torque and misalignment.

Torque:

Min.: 0.7 Nm (0.52 ft.lb)

Max.: 560 Nm (413.03 ft.lb)

Rotational speed:

Min.: 6000 rpm (37699.11 rad.min-1)

Max.: 45000 rpm (282743.34 rad.min-1)

MJC (set screw type)

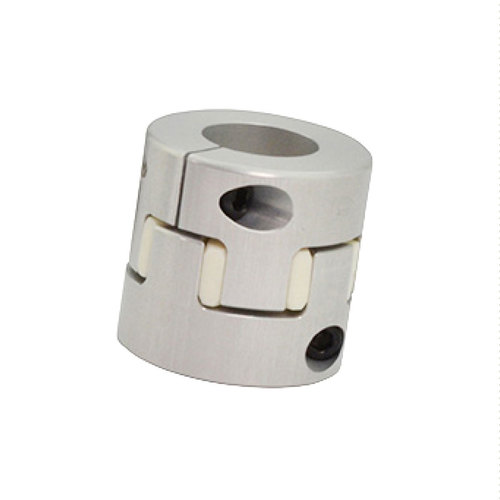

MJC-CS (single clamp type)

MJC-K  (set screw + keyway)

MJC-CSK (single clamp + keyway)

Optional Services

-Couplings Bore and Keyway Additional Modification Service

-Cleanroom Wash / Cleanroom Packing Service

-Coupling Stainless Steel Screw Alteration Service

Applications for tight fit sleeve

XY stage / Index table / Machine tool / Injection molding machine

Applications for easy fit sleeve

Transport device / Mixer / Ventilator / Pump / Dispenser

Please feel free to contact us for a quotation.
