MOM Series
Product Details:
- Bore 3-42
- Material Steel
- Structure Other
- Outer Diameter 12-70 Millimeter (mm)
- Application Mixer / Pump / Small power press / Grinder
- Surface Treatment Black-Oxide
- Click to View more
MOM Series Price And Quantity
MOM Series Product Specifications
- Black-Oxide
- Mixer / Pump / Small power press / Grinder
- 12-70 Millimeter (mm)
- Steel
- Other
- 3-42
Product Description

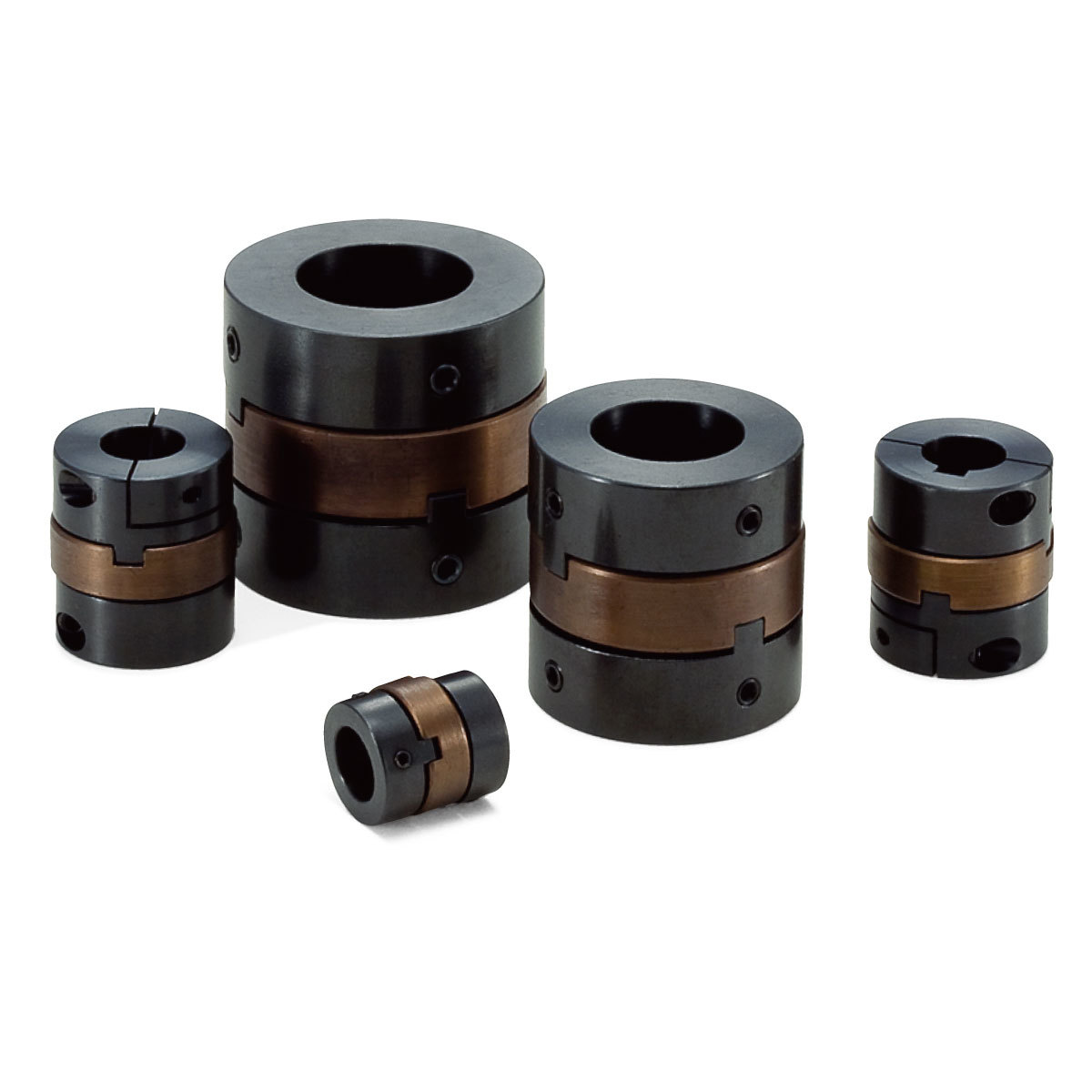

MOM is an Oldham type flexible coupling.
FCD400 is adopted in the spacer. Suitable for low-speed and high-torque specification.
High performance grease is applied in the gap between hubs and the spacer in order to prevent sticking. Slippage of hubs and a spacer allows large eccentricity and angular misalignment to be accepted. A projection placed in the spacer (resin pin) allows angular misalignment to be effortlessly accepted.
The grease accumulated in a grease hole will gradually seep out during operation, thereby maintaining the lubrication property over a long period.
MOM (set screw type)
MOM-C (clamping type)
MOM-K (set screw + keyway)
MOM-CK (clamping type + keyway)
MOR (Aluminum hub + Polyacetal spacer) is also available.
Application
Mixer / Pump / Small power press / Grinder
Optional Services
-Couplings Bore and Keyway Additional Modification Service
Please feel free to contact us for a quotation.
