Rigid Type Coupling (XRP Series)
Product Details:
- Outer Diameter 16-39 Millimeter (mm)
- Application High precision measurement device / High precision XY stage / Encoder
- Click to View more
X
Rigid Type Coupling (XRP Series) Product Specifications
- High precision measurement device / High precision XY stage / Encoder
- 16-39 Millimeter (mm)
Product Description

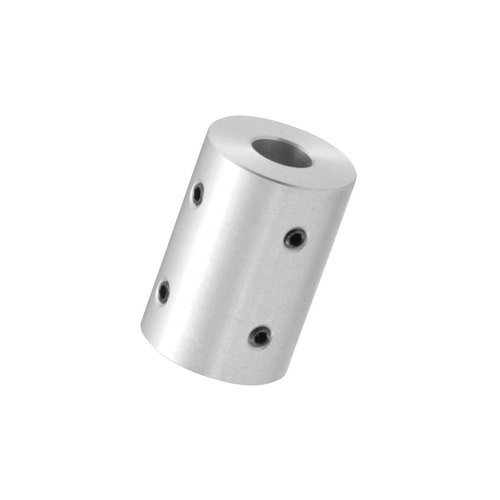

The Rigid Type Coupling (XRP Series) is a high-precision shaft fastening structure that has been designed to achieve ultimate levels of coaxiality, bore diameter, and run out. This coupling is made of extra super duralumin (A7075) which is an aluminum alloy known for its high strength. Its light weight and ultra-small moment of inertia allow for high response and rotational balance.
To ensure precision, each XRP coupling undergoes a total inspection process that uses a 3D measurement device in an environment of constant temperature and humidity. The inspection report, which is attached to every product before shipment, includes details on bore diameters, coaxiality of bores, and radial run out and run out of end face against bore. The inspection device used is UPMC850CARAT SuperAcc made by Carl Zeiss, which has a measurement precision of max allowable instruction error 0.7L/600m and max allowable probing error 0.6m at a temperature of 20 deg C and humidity of 50% .
If you are looking for a high-precision coupling that offers superior performance and accuracy, the XRP Series is an excellent choice. Please feel free to contact us for a quotation.
Q: What is XRP Series Rigid Type Coupling?
A: XRP Series Rigid Type Coupling is a high-precision coupling used in high-precision measurement devices, high-precision XY stages, and encoders.
Q: What is the level of precision of XRP Series Rigid Type Coupling?
A: The XRP Series Rigid Type Coupling has the ultimate level of precision in terms of coaxiality, bore diameter, and run out. It also comes with an inspection report before shipment.
Q: What are the features of XRP Series Rigid Type Coupling?
A: The XRP Series Rigid Type Coupling is lightweight, has an ultra-small moment of inertia, and has a fast response. It also has a shaft fastening structure that considers rotational balance and unbalance.
Q: What material is used in the XRP Series Rigid Type Coupling?
A: The XRP Series Rigid Type Coupling is made from extra super duralumin (A7075), which has the highest strength among aluminum alloys.
Q: How is the precision of XRP Series Rigid Type Coupling assured?
A: The precision of XRP Series Rigid Type Coupling is assured by total inspection using a 3D measurement device. The inspection is conducted in an environment of constant temperature and humidity.
Q: What are the inspection items for XRP Series Rigid Type Coupling?
A: The inspection items for XRP Series Rigid Type Coupling include bore diameters D1 and D2, coaxiality of bores D1 and D2, radial run out, and run out of end face against bore.
To ensure precision, each XRP coupling undergoes a total inspection process that uses a 3D measurement device in an environment of constant temperature and humidity. The inspection report, which is attached to every product before shipment, includes details on bore diameters, coaxiality of bores, and radial run out and run out of end face against bore. The inspection device used is UPMC850CARAT SuperAcc made by Carl Zeiss, which has a measurement precision of max allowable instruction error 0.7L/600m and max allowable probing error 0.6m at a temperature of 20 deg C and humidity of 50% .
If you are looking for a high-precision coupling that offers superior performance and accuracy, the XRP Series is an excellent choice. Please feel free to contact us for a quotation.
Specification:
- Torque: Min.: 1 Nm (0.74 ft.lb) and Max: 10 Nm (7.38 ft.lb)
- Rotational speed: Min.: 16000 rpm (100530.97 rad.min-1) and Max: 39000 rpm (245044.23 rad.min-1)
FAQ of Rigid Type Coupling (XRP Series)
Q: What is XRP Series Rigid Type Coupling?
A: XRP Series Rigid Type Coupling is a high-precision coupling used in high-precision measurement devices, high-precision XY stages, and encoders.
Q: What is the level of precision of XRP Series Rigid Type Coupling?
A: The XRP Series Rigid Type Coupling has the ultimate level of precision in terms of coaxiality, bore diameter, and run out. It also comes with an inspection report before shipment.
Q: What are the features of XRP Series Rigid Type Coupling?
A: The XRP Series Rigid Type Coupling is lightweight, has an ultra-small moment of inertia, and has a fast response. It also has a shaft fastening structure that considers rotational balance and unbalance.
Q: What material is used in the XRP Series Rigid Type Coupling?
A: The XRP Series Rigid Type Coupling is made from extra super duralumin (A7075), which has the highest strength among aluminum alloys.
Q: How is the precision of XRP Series Rigid Type Coupling assured?
A: The precision of XRP Series Rigid Type Coupling is assured by total inspection using a 3D measurement device. The inspection is conducted in an environment of constant temperature and humidity.
Q: What are the inspection items for XRP Series Rigid Type Coupling?
A: The inspection items for XRP Series Rigid Type Coupling include bore diameters D1 and D2, coaxiality of bores D1 and D2, radial run out, and run out of end face against bore.
