Slit Type Coupling (MSH Series)
Product Details:
X
Product Description
MSH is a metal spring coupling with single-piece construction. A spiral-shaped slit is inserted into a cylindrical material.
Because there is no backlash and the flexibility is excellent, it is suited to use at low torque for encoders, etc.
The eccentric reaction force is minimal. It reduces burden on the shaft and helps prevent equipment damage.
Metric and inch size bore diameters are available as standard.
The structure is simple, enabling easy separation.
<Torque>
Min.: 0.2 Nm (0.15 ft.lb)
Max.: 5.78 Nm (4.26 ft.lb)
<Rotational speed>
Min.: 19000 rad.min-1 (3023.94 rpm)
Max.: 78000 rad.min-1 (12414.09 rpm)

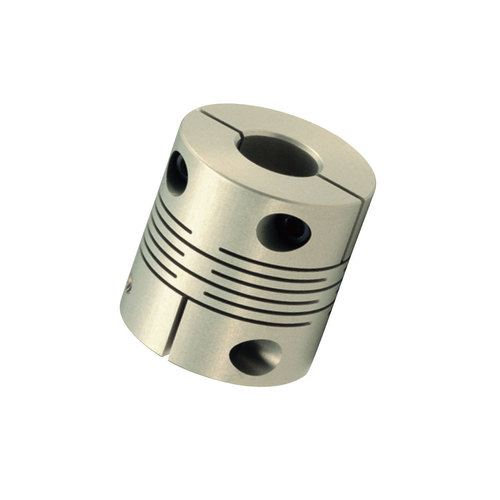

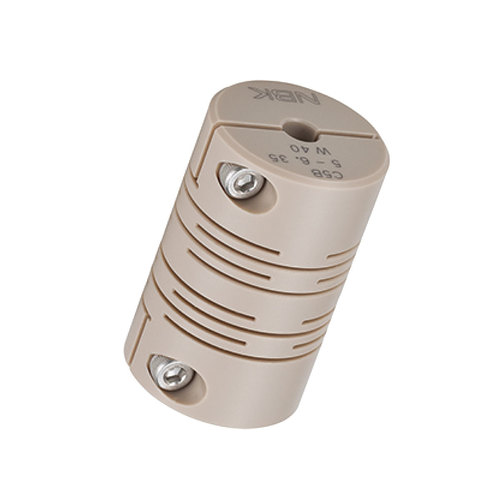

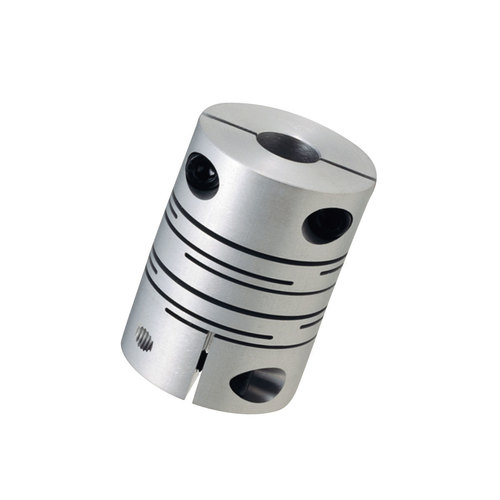

Other Products in 'Slit Type Coupling' category
