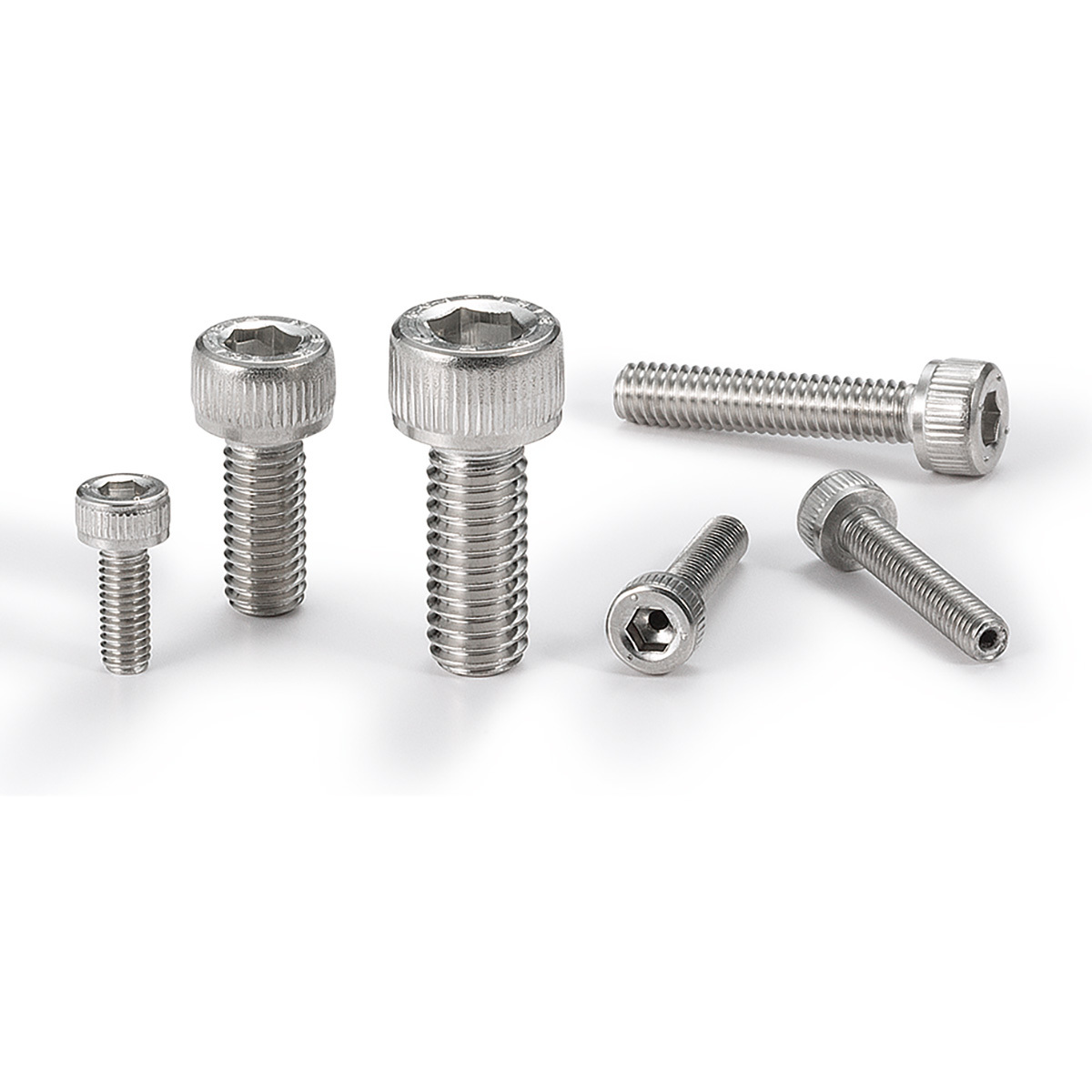

Screw (SVSLG Series)
Product Details:
- Size M3 to M6
- Length 6 to 30 Millimeter (mm)
- Material Stainless Steel
- Type Stainless Screw
- Head Shape Type Hex Socket Head Cap
- Click to View more
X
Screw (SVSLG Series) Price And Quantity
Screw (SVSLG Series) Product Specifications
- Stainless Screw
- Hex Socket Head Cap
- 6 to 30 Millimeter (mm)
- M3 to M6
- Stainless Steel
Product Description
Application
Vacuum devices / Vacuum chambers / FPD production equipment / Semiconductor devices / Electron microscopes
Characteristics
The ventilation hole easily releases gas trapped in the screw holes of equipment and machines, and supports vacuum drawing of vacuum devices.
Hex socket head cap screw with ventilation hole high intensity stainless steel SNSLG (SNSLG).
Tensile strength 1000 N/mm2, 0.2% proof load 800 N/mm2
The proof load is approximately 1.8 times that of general stainless steel hex socket head cap screws. Therefore, smaller screw diameters and reduced quantities are available to save space and reduce weight.
Made of SUS316L. It has excellent corrosion resistance.
Non-magnetic.
Cleanroom wash/cleanroom packing provided.
Specifications:
Diameter:
Min.: 3 mm (0.12 in)
Max.: 6 mm (0.24 in)
Length:
Min.: 6 mm (0.24 in)
Max.: 30 mm (1.18 in)
